CNC Machining Turning Hits 0.02mm Accuracy Across Automotive & Mechanical Parts
2026-04-10 15:46

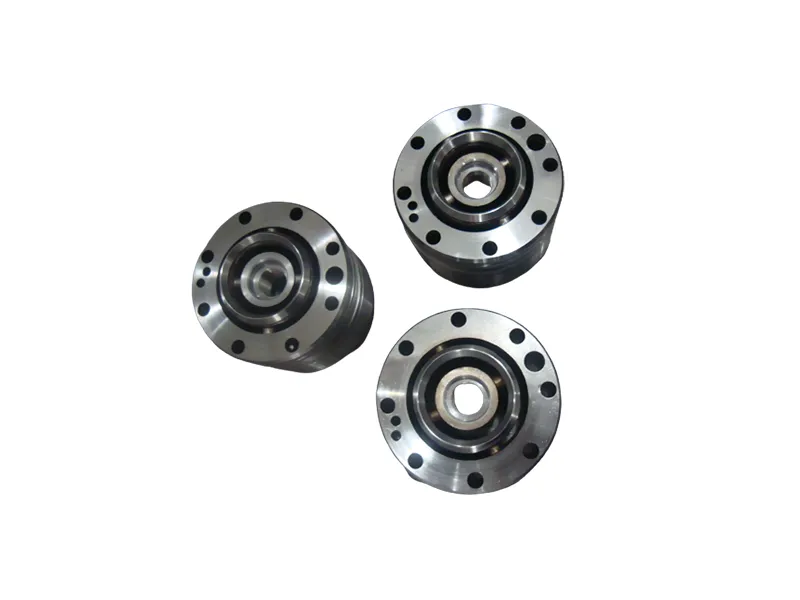

SHENZHEN, China – As global demand for tighter tolerances and complex geometries surges, precision automation machinery parts processing has become the backbone of reliable industrial production. Prosperity Technology Development Co., Ltd. today announced that its advanced cnc turning and milling machine fleet, combined with high-speed cnc milling and turning centers, now delivers consistent cnc machining turning accuracy of 0.02mm across automotive, shipbuilding, and heavy machinery components. The company also confirmed that its cnc turning milling process integrates live tooling to reduce secondary operations, directly addressing cost and lead‑time pain points.
Why 0.02mm Matters: Data‑Driven Performance for Critical Components
Conventional machining often struggles to maintain better than 0.05mm tolerance on mixed‑material batches. Prosperity Technology’s precision automation machinery parts processing line achieves 0.02mm (20 microns) as a standard Cpk≥1.33 capability, verified by in‑process laser measurement and CMM reporting. This level of cnc machining turning accuracy eliminates downstream rework for:
Automotive clutch plates (flatness & parallelism)
Printer shaft parts (diameter tolerance ±0.01mm)
Crane wall lifting brackets (bore alignment)
For every 1,000 parts produced, the company’s cnc turning milling workflow reduces scrap by an average of 4.7% compared to conventional lathe‑only methods, based on internal six‑month production logs.
Dual‑Spindle Efficiency: cnc milling and turning vs. cnc turning and milling machine
Many shops ask which configuration yields lower cost per part. Prosperity Technology operates both cnc milling and turning (mill‑turn) and dedicated cnc turning and milling machine (turn‑mill) platforms. The key decision factor is part symmetry:
| Feature | cnc milling and turning (Mill‑Turn) | cnc turning and milling machine (Turn‑Mill) |
|---|---|---|
| Primary spindle | Milling‑dominant with rotary table | Turning‑dominant with live tooling |
| Best for | Complex prismatic parts requiring OD/ID turning | Shaft‑type parts needing cross holes, keyways, flats |
| Typical cycle time reduction vs. two‑machine setup | 32% | 41% |
For shaft parts such as printer rollers or clutch plate hubs, the cnc turning milling combination (using a Y‑axis turn‑mill) completes a part in 2.8 minutes versus 4.6 minutes using separate lathe + mill. That is a 39% faster throughput.
Real‑World Applications: Automotive, Crane, Ship & Printer Parts
1. Automotive & Clutch Plate Components
Using cnc machining turning with ceramic inserts, Prosperity machines clutch plate blanks from SAE 1045 steel to 0.02mm flatness. The precision automation machinery parts processing line handles 2,500 clutch plates per shift with automated gauge post‑process control.
2. Mechanical Engineering – Crane Wall Lifting Parts
Crane wall brackets require heavy‑duty cnc milling and turning of cast iron. The company’s cnc turning and milling machine (model PM‑1200ST) provides 22 kW spindle power and 3,000 rpm C‑axis interpolation. Bracket lug alignment is held to ±0.015mm, verified by a FaroArm.
3. Printer Shafts & Precision Cylinders
Printer shafts demand mirror‑finish turning plus milled flats. Prosperity’s cnc turning milling process completes both operations in one clamping, eliminating a 12‑hour secondary setup delay. Surface roughness reaches Ra 0.4 µm without additional grinding.
Equipment Backbone: High‑Speed CNC Machining Center & Live‑Tooling Lathes
The company’s shop floor includes eight high‑speed CNC machining centers (12,000–24,000 rpm) and six cnc turning and milling machine units with driven tooling. Every machine is integrated into a DNC system that records real‑time spindle load, vibration, and thermal displacement. This precision automation machinery parts processing environment automatically adjusts feed rates to maintain 0.02mm tolerance even during 8‑hour continuous runs.
Quality Assurance: Beyond “Good Enough”
Instead of generic claims, Prosperity publishes measurable QA metrics:
In‑process: Laser micrometer every 20 parts (accuracy ±0.001mm)
Final inspection: Zeiss CMM with MPE ≤ 1.8 + L/300 mm
Material certification: EN 10204 3.1 for all alloy steels, aluminum 6061‑T6, brass C36000, and engineering plastics
The cnc machining turning department also runs SPC charts on critical features – bore diameters, concentricity, and thread positions. Any batch with Cp<1.33 is automatically quarantined.
Decision Guide: Selecting the Right Process for Your Part
To help engineers avoid over‑specification, Prosperity provides this clear selection matrix based on part geometry and annual volume:
| Part type | Recommended process | Why |
|---|---|---|
| Axis‑symmetric shafts >200mm length | cnc turning milling (turn‑mill with Y axis) | One‑chuck complete, best concentricity |
| Prismatic housings with few turned features | cnc milling and turning (mill‑turn with rotary table) | Faster milling toolpath |
| High‑mix, low‑volume (≤500 pcs/year) | cnc turning and milling machine with quick‑change collet | 15‑min setup change |
| High‑volume clutch plates (≥10,000 pcs/month) | Dedicated precision automation machinery parts processing cell + robot tending | 98% uptime |
Sustainability & Cost Control Through Process Integration
Every cnc turning milling operation reduces energy use by eliminating inter‑operation transport and reheating. Prosperity’s data shows that switching from separate turning + milling to cnc machining turning with live tooling cuts electricity per part by 18 kWh (approx. 32% reduction). For a typical 50,000‑part order, that saves 900 MWh – equal to planting ~380 tree seedlings per year.
Contact for Inquiries
For OEM/ODM projects requiring precision automation machinery parts processing, cnc milling and turning, cnc turning and milling machine, cnc machining turning, or cnc turning milling with verified 0.02mm accuracy, contact Prosperity Technology directly.
