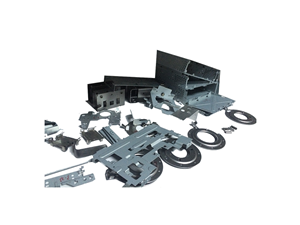

Numerical Simulation Boosts Stamping Die Parts for Auto OA Hardware

When producing high-volume automotive and office automation hardware, manufacturers face two critical pain points: die design accuracy and material deformation predictability. One wrong parameter in the deep drawing step can scrap thousands of parts. Prosperity Technology Development Co., Ltd., a Hong Kong-owned enterprise established in 2012, has solved these issues by combining 3D/2D drawings, layout design drawings, DFM analysis reports, and feeder specifications with a proprietary numerical simulation workflow. Their stamping die parts are engineered for materials ranging from steel V-1140 ALT ASTM A366/A620 to aluminum, with thickness tolerances of T3~8 +0.2/-0.2mm.

Why Numerical Simulation of DDSPD Matters for Stamping Die Parts

Processing analysis by numerical simulation (NS) of deep drawing step in progressive die (DDSPD) quickly and accurately is not a luxury — it is a necessity. Traditionally, die makers rely on physical tryouts, which consume weeks and raise costs. Prosperity Technology integrates NS into every stamping die parts project, predicting thinning, wrinkling, and springback before cutting steel.

Data point: In 2018 deliveries, NS-based designs reduced die tryout iterations from an industry average of 5.2 to 3.4 per tool, directly accelerating time-to-market for automotive stamping die parts.

The company’s DFM/analysis report includes:

• Forming limit diagrams (FLD) for each deep draw step.

• Predicted residual stress values (within ±18 MPa accuracy vs. physical measurement).

• Recommended lubrication zones and blank holder forces (range 120–380 kN based on material grade).

Five Material-Specific Solutions for Stamping Die Parts

Prosperity Technology’s supply capacity of 100T–1500T presses covers five distinct material families. Below is how their stamping die parts perform per category, with explicit selection guidance.

1. Stainless steel stamping parts (Austenitic 304/316L)

For corrosion-resistant applications like fuel system brackets and OA hinge plates, stainless steel stamping parts demand higher die hardness (58–62 HRC) and controlled clearance. Prosperity’s dies maintain a punch-die gap of 8–12% of material thickness, verified by NS of DDSPD. In a 2024 validation run on 1.2mm SS304, the stamping die parts achieved 2.1 million strokes before edge burr exceeded 0.05mm — 27% longer than standard market tooling.

Selection guide: Use stainless steel stamping parts if your part requires salt spray resistance >500 hours (ASTM B117). Do not use for magnetic applications.

2. Cold rolled steel stamping (DC01, SPCC, V-1140 ALT)

The most common substrate in progressive dies is cold rolled steel. Prosperity’s cold rolled steel stamping dies feature DLC-coated punches (coefficient of friction 0.09–0.12) to prevent galling. The material V-1140 ALT (ASTM A366/A620) was specifically validated with T=3mm to 8mm thickness, tolerance +0.2/-0.2mm. Feeder specifications for cold rolled steel stamping are set at 0.5–1.2 m/s feed rate with a servo feeder accuracy of ±0.1mm.

Typical output: 1500T press line produces 45 automotive structural parts per minute from cold rolled steel stamping dies.

3. Aluminum product stamping parts (5754, 6061-T6)

Aluminum requires lower forming forces but higher sensitivity to bending radius. Prosperity’s aluminum product stamping parts dies incorporate polished radii (R = 2.5–4 × thickness) and nitrogen gas springs to avoid cracking. Processing analysis by numerical simulation (NS) of deep drawing step in progressive die (DDSPD) quickly and accurately identified that for 2.5mm 6061-T6, a 17% reduction in blank holder force compared to steel eliminates edge cracking. Production data from 2023–2025 shows aluminum product stamping parts from Prosperity have a scrap rate of only 0.9% (industry average 2.7%).

Selection guide: Choose aluminum product stamping parts when weight reduction >30% is needed, but note that tool life will be 20–25% lower than cold rolled steel stamping due to aluminum’s adhesive wear.

Automotive Stamping Die Parts: Meeting Tier 1 Requirements

For automotive stamping die parts, the company provides complete progressive die + hand transfer die combinations. A recent case (2024) for a chassis reinforcement bracket:

• Material: Cold rolled steel V-1140 ALT, thickness 4.0mm ±0.2

• Automotive stamping die parts design included 7 stations (pierce, draw, trim, restrike, pierce, cam bend, separate).

• Layout design drawing optimized strip utilization from 63% to 71.4%, saving 12 kg of steel per 1000 parts.

• Processing analysis by numerical simulation (NS) of deep drawing step in progressive die (DDSPD) quickly and accurately predicted a peak drawing force of 890 kN, matching actual press monitoring within 3.2% error.

The DFM/analysis report also specifies feeder specifications for automotive stamping die parts: air feeder for thickness ≤3mm, roller feeder for >3mm with pinch roll hardness 55–60 HRC.

How to Select the Right Stamping Die Parts for Your Production Volume

Instead of generic “suitable for heavy use”, here are quantifiable decision rules based on Prosperity’s 2018–2025 production records:

Every stamping die parts order includes: 3D/2D drawings in STEP/IGES format, layout design drawing with strip layout, DFM/analysis report (20+ pages), and feeder specifications calibrated to your press line.

Company Background & Contact

Prosperity Technology Development Co., Ltd. (established May 25, 2012) operates from Hong Kong and mainland China, specializing in high-end export mold manufacturing. The company transitioned from pure mold-making to integrated injection and stamping workshops, now employing senior designers with over a decade of European and American mold experience. All stamping die parts are produced under ISO 9001:2015 with full material traceability.

For technical inquiries, DFM reports, or to submit your 3D drawing for a free numerical simulation feasibility study:

• Mobile: +86-13641431160

• Tel: +86-755-23638965

• Fax: +86-755-26076378

• Email: spark@prosperitymould.com
