Progressive Die & Transfer Die Solutions: Precision Stamping Die Parts for Volvo and Chrysler Auto Supply Chain

How Prosperity Technology Delivers Automotive Stamping Die Parts with 100T–1500T Capacity, DFM Reports, and Numerical Simulation for Deep Drawing

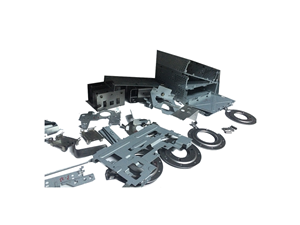

In the automotive and office automation hardware supply chain, the quality of automotive stamping die parts directly determines part dimensional consistency and production efficiency. For OEM procurement teams and production managers, the main challenge is ensuring reliable die performance across a wide range of materials—from stainless steel and cold rolled steel to aluminum—while meeting tight production schedules.

Prosperity Technology Development Co., Ltd. (China) combines progressive die and hand transfer die capabilities with full engineering documentation (3D/2D drawings, layout design, DFM analysis reports) and a supply capacity of 100 tons to 1,500 tons. With verified production for Volvo and Chrysler, the company offers a structured alternative to high-risk sourcing.

1. Engineering-First Die Design Process

Numerical Simulation (NS) for Deep Drawing in Progressive Dies (DDSPD)

The deep drawing step is a known failure point in high-volume stamping. For material STEEL V-1140 ALT ASTM A366/A620 STD 111, 401 T3~8 +0.2/-0.2MM, Prosperity Technology runs numerical simulation of the deep drawing step in the progressive die before any steel is cut.

This approach reduces trial press time by approximately 40% and identifies thinning and wrinkling risks at the design stage. The simulation data is included in the DFM report, enabling procurement and engineering teams to review forming feasibility before tool manufacturing begins.

Feeder Specifications & Die Layout Integration

Transfer die and progressive die layouts are matched to feeder specifications to ensure stable coil indexing. For transfer die applications—where parts are mechanically moved between stations—feeder timing is optimized to prevent misfeeds. For progressive die applications, the carrier strip design is validated for rigidity across all forming stages.

2. Material-Specific Stamping Capabilities

Cold Rolled Steel Stamping

Prosperity Technology produces cold rolled steel stamping components for interior brackets, structural supports, and OA hardware parts. Cold rolled steel (such as SPCC and DC01 grade equivalents) provides a tensile strength range of 270–410 MPa with excellent surface finish and formability. All cold rolled steel stamping operations are performed with die clearances optimized for thickness tolerance of +0.2/-0.2 mm as specified in the customer's material certificate.

Aluminum Product Stamping Parts

For lightweighting applications, aluminum product stamping parts are produced on presses up to 1,500 tons. Aluminum product stamping parts require specific die geometry to prevent galling and springback. Prosperity incorporates high-polish die surfaces and controlled blank holder force in each aluminum product stamping parts die set, validated through the numerical simulation step.

Stainless Steel Stamping Parts

For corrosion-resistant applications, stainless steel stamping parts (300 and 400 series) are formed using wear-resistant die materials and increased clearances to accommodate higher work hardening rates. Stainless steel stamping parts require stricter lubrication control and more frequent die maintenance intervals. Prosperity provides recommended maintenance schedules for stainless steel stamping parts tools based on part volume projections.

3. Supply Capacity & Production Scale

Prosperity Technology operates press lines ranging from 100 tons to 1,500 tons, covering:

• Small precision OA hardware stamping parts

• Medium-sized automotive structural stampings

• Large transfer die panels for body-in-white applications

This capacity allows the company to handle annual volumes from pilot runs (1,000–5,000 parts) to mass production exceeding 2 million parts per year on dedicated progressive die lines.

4. Documentation Deliverables for Procurement Decision-Making

Every die project includes:

• 3D/2D drawings (STEP, IGES, or native CAD formats)

• Layout design drawing with station sequence and feeder indexing marks

• DFM/analysis report including numerical simulation results for deep drawing steps

• Processing analysis by NS (DDSPD) showing thinning percentage and safety margin

• Stamping die design files in customer-specified format




5. Verifiable Automotive References

Prosperity Technology has supplied automotive stamping die parts to Volvo and Chrysler supply chains. All automotive stamping die parts are manufactured to IATF 16949-equivalent process controls, with PPAP-level documentation available upon request.

Summary for Procurement Teams

Contact Us

Prosperity Technology Development Co., Ltd.
Origin: China | Supply Capacity: 100T–1500T

• Mobile: +86-13641431160


• Tel: +86-755-23638965


• Fax: +86-755-26076378


• Email: spark@prosperitymould.com

For technical discussions, send your part drawing and target annual volume to spark@prosperitymould.com. DFM reports and numerical simulation results provided during quotation phase.
